Product

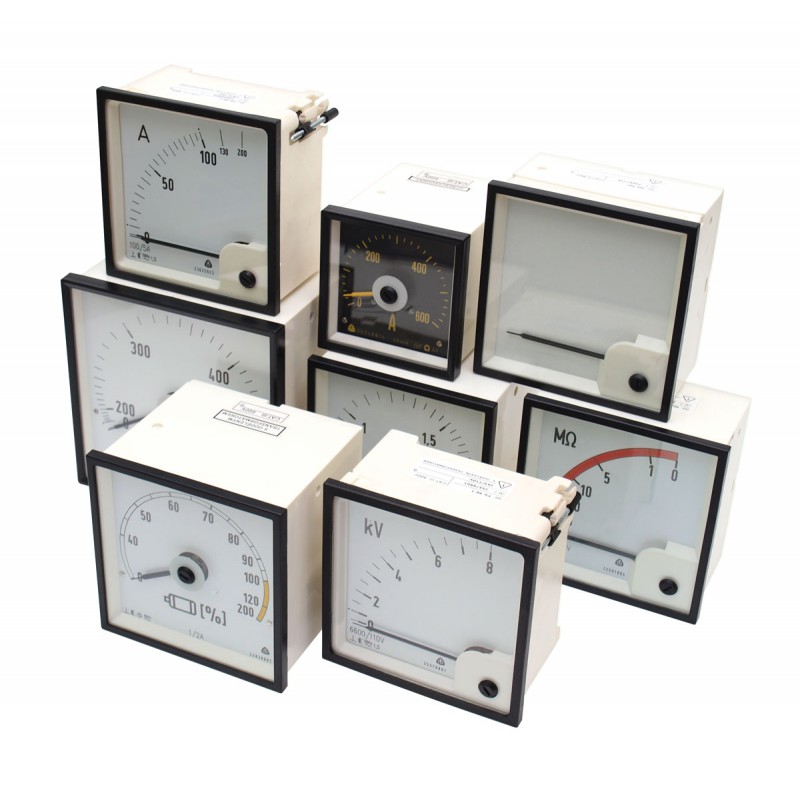

panel and switchboard apparatus
Our advantage is the production of a wide range of switching devices and their possibilities of whether the railway technology, industrial switchgear, electric traction substations, switching stations, etc.
With over 100 years of experience in the field we offer our customers custom manufacture according to their requirements (eg. Color field on the scale, customer scale, multi-scale, 6-fold overload, otřesuvzdornost, backlight devices, negative performance etc.).
Quality measuring switchgear components and devices manufactured in standardized dimensions 72x72mm, 96x96mm and some variety in dimensions of 120x120mm pointer deflection of 90 °, 240 ° and 360 °
Between us supplied panel and switchboard apparatus includes:
AC and DC voltmeters and ammeters
Power meters, varmeters, Phase meters, Synchroscopes
frequency meter
tachometers
thermometers
High voltage dividers
For more information about the wide range of panel and switchboard elements and instruments as well as our other products, please www.metra.cz
Price of the Product
Category of the Product
Company website
Our recommended products and services
-
-

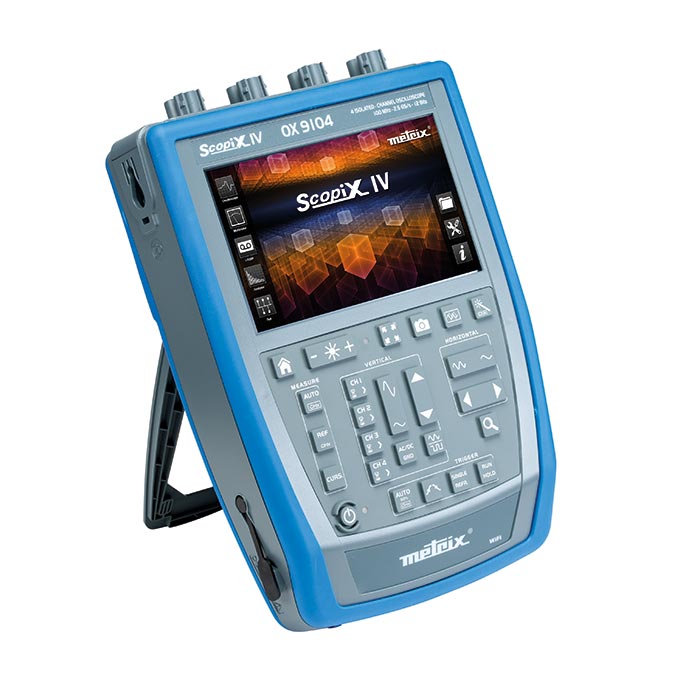

The new, comprehensive, stand-alone, portable, IP54, METRIX® SCOPIX IV oscilloscopes are equipped with channels which are genuinely isolated from one another and from the earth with 600 V CAT III safety. They offer all the analysis modes: multimeter, analyser, recorder and viewing of the files recorded on the oscilloscope. Designed and developed using the latest cutting-edge technology, their ergonomic format ensures optimum user comfort. Ergonomics: new design With its backlit 7" WVGA TFT colour touch screen with black background which makes it particularly easy to read, menus available in more than 13 languages and the design of the keypad and casing, the SCOPIX IV offers optimum user comfort. Technical specifications • Bandwidth from 60 MHz to 300 MHz • 2 or 4 totally-isolated channels • 30 direct command keys on the front panel • Sampling rate: 2.5 GS/s in one-shot mode and 100 GS/s max in ETS zoom mode • Quick battery charging in just 2 hours; battery life up to 8 hours • Communication: Ethernet/WiFi/USB/μSD. The Ethernet network interface with ScopeNet web server can be used to take control of the instrument remotely and transfer curves or screenshots without any additional software. • High-capacity μSD storage; above 32 GB: SD, SDHC, SDXC • A ScopeNet ANDROID applications is available from Google store. • PROBIX plug-and-play accessories: quick, error-free implementation. The coefficients, scales and units of the sensors and the configuration of the channels are managed automatically and the probes and adapters are recognized immediately as soon as they are connected. • Delivered complete in a bag with its measurement accessories
-
The shockproof, IP54, HANDSCOPE OX 5022B oscilloscope fits comfortably in one hand. This ergonomic instrument is also equipped with a TFT colour screen and LED backlighting for precise data display. To make it simpler to use, intuitive pictograms and integrated multilingual help are available at all times. The HANDSCOPE combines 3 measuring instruments in 1 on 2 channels: - 20 MHz oscilloscope with 2 totally-isolated 600 V CAT III channels - 20 MHz bandwidth – 2 GS/s - 5 mV to 200 V/div and 25 ns to 200 s/div - Independent 8,000-count multimeter with power measurements, - Built-in 31-order harmonic analyser (fundamental between 40 and 450 Hz). 2 MB are available for recording data and, in multimeter mode, it is possible to store graphic recordings of 2,700 measurements (5 min to 1 month). Isolated USB communication with the SCPI protocol is available. This makes it simple to program the instrument remotely with the SX-METRO software. These products have been developed using an Eco-Design approach to reduce their environmental impact. They come with a 3-year warranty.
-

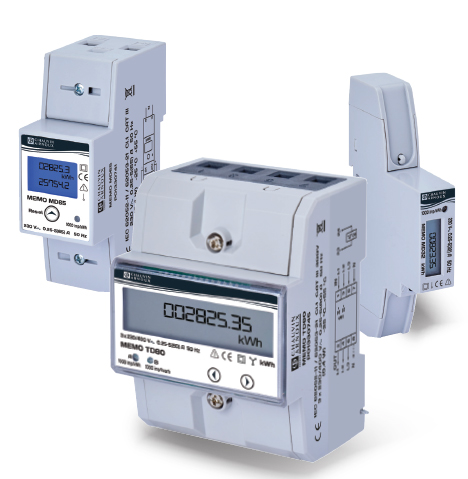

Submeters for measuring active energy consumption on a single-phase or three-phase network up to 80 A.A solution compliant with the latest thermal regulationsIdeal for metering your various uses (lighting, hot water for sanitary purposes, heating, etc.)Reliable, accurate measurement of active energy with Class 1 accuracyClear, simple display which is quick and easy to readDirect connection up to 80 A for quick, simple integration on single-phase and three-phase feedersCommissioning without any parameter settings to start metering immediatelyRange MD32 - single-phase 32A MD65 - single-phase 65 A TD80 - three-phase 80 A
-
