Product
G-View 400CM
# Product Name: [ G-View400CM ]
G-View 400CM is a fine-shape measurement device using a noncontact scanning white light interference principles of the height measurement is possible to measure the nano-scale, and the binarized image by scanning white light interference due to the existing image processing is to remove the interference pattern, but not the interference pattern Dimensioning according offers innovative features that are available at the same time.
Without the movement of materials from the same place two-dimensional and three-dimensional measurement is possible and, to a distance of composite materials is measurable facilities.Customers to cost, time and space, and maximize the value of the complex equipment.
Price of the Product
Technical Details
-Depending on the reflectivity of the sample to provide an innovative function for selecting the reflectivity of the reference mirror.
-Provide an innovative function that can be selected according to the illumination color of the sample.
-Provide a coaxial illumination, ring illumination, anticline lighting.
-The user automatically. Manually measuring and analysis is possible.
-The location provides automatic checking and correction functions.
-Automatic check-ins provide height.
# Measurement Application
-OLED Substrate-Coining Bump on advanced IC Packages
-Precise glass components (Micro Lens)
-MEMS-Laser marks on semiconductor wafer
-PCB Substrate(FC-BGA, CSP, SIP)
-Surface micromachining
Category of the Product
Company website
Our recommended products and services
-
-
Highlights Pointed glass tip: penetrating, fibre junction, perforating Waterproof, lightweight and pocket-sized Calibration in 30 s, extremely simple and intuitive Ultra-fast response time Description The CA 10002 pH tester is ideal for many applications in the agri-food sector: Dairy product fermentation testing Inspection of cheeses through to the curing stage Milk quality testing It is also suitable for measuring soil pH in agriculture. Its accuracy and quick response meet the requirements of the first-level tests in R&D Measurement range : pH 2.00 to 12.00 pH Temperature 0.0 to 80.0 °C / 32.0 to 176.0 °F
-
Highlights Pointed glass tip: penetrating, fibre junction, perforating Waterproof, lightweight and pocket-sized Calibration in 30 s, extremely simple and intuitive Ultra-fast response time Description The CA 10002 pH tester is ideal for many applications in the agri-food sector: Dairy product fermentation testing Inspection of cheeses through to the curing stage Milk quality testing It is also suitable for measuring soil pH in agriculture. Its accuracy and quick response meet the requirements of the first-level tests in R&D Measurement range : pH 2.00 to 12.00 pH Temperature 0.0 to 80.0 °C / 32.0 to 176.0 °F
-

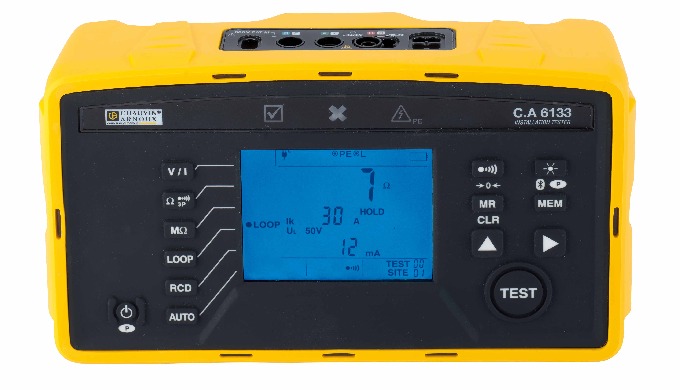

Designed for checking safety on electrical installations, the C.A 6131 and C.A 6133 testers can be used to test new installations before powering up, check existing installations, whether in operation or not, and troubleshoot malfunctions. For certification organizations, these portable instruments are simple, effective and, above all, compliant with the applicable standards. The C.A 6131 and C.A 6133 are designed to be exceptionally simple to use. All the measurements and functions are accessible directly on the front panel of these compact, lightweight instruments. Their terminal strips include explicit markings to prevent any risk of connection errors. The backlit LCD screen is particularly easy to read. A visual indication of the test result (OK/NOK) is clearly visible on the instrument. To make them as easy to use as possible, these new testers offer several solutions for hands-free working: a magnetized casing, a neck strap and built-in "feet". A continuity rod can be used to access remote measurement points such as lighting. A three-pole cable has also been developed for direct measurements on 2P+E sockets. A remote control probe (option) can be used to start and store the results of any remote tests. An external clamp can be connected to the instrument for current measurements. The C.A 6133 is equipped with extra functions: - Save time with automatic test sequences such as: AUTO-RCD, LOOP–RCD–INSULATION - Current measurement with the MN73A clamp is particularly simple: it is recognized on connection, as is the measurement range. - Organized storage: it is possible to store the measurement results from up to 30 sites with 99 tests each! The IT-Report ANDROID application can be used to transfer the test results stored in the testers onto a tablet or smartphone via Bluetooth. Test reports are then generated and sent automatically by email or simply stored for processing later on.
-
