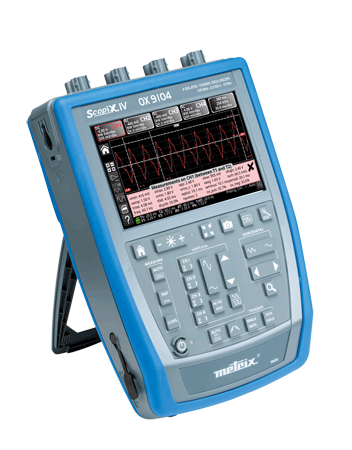

SCOPIX IV Portable digital oscilloscopes
The new, comprehensive, stand-alone, portable, IP54, METRIX® SCOPIX IV oscilloscopes are equipped with channels which are genuinely isolated from one another and from the earth with 600 V CAT III safety. They offer all the analysis modes: multimeter, analyser, recorder and viewing of the files recorded on the oscilloscope. Designed and developed using the latest cutting-edge technology, their ergonomic format ensures optimum user comfort.
Ergonomics: new design
With its backlit 7" WVGA TFT colour touch screen with black background which makes it particularly easy to read, menus available in more than 13 languages and the design of the keypad and casing, the SCOPIX IV offers optimum user comfort.
Technical specifications
• Bandwidth from 60 MHz to 300 MHz
• 2 or 4 totally-isolated channels
• 30 direct command keys on the front panel
• Sampling rate: 2.5 GS/s in one-shot mode and 100 GS/s max in ETS zoom mode
• Quick battery charging in just 2 hours; battery life up to 8 hours
• Communication: Ethernet/WiFi/USB/μSD. The Ethernet network interface with ScopeNet web server can be used to take control of the instrument remotely and transfer curves or screenshots without any additional software.
• High-capacity μSD storage; above 32 GB: SD, SDHC, SDXC
• A ScopeNet ANDROID applications is available from Google store.
• PROBIX plug-and-play accessories: quick, error-free implementation. The coefficients, scales and units of the sensors and the configuration of the channels are managed automatically and the probes and adapters are recognized immediately as soon as they are connected.
• Delivered complete in a bag with its measurement accessories
Ergonomics: new design
With its backlit 7" WVGA TFT colour touch screen with black background which makes it particularly easy to read, menus available in more than 13 languages and the design of the keypad and casing, the SCOPIX IV offers optimum user comfort.
Technical specifications
• Bandwidth from 60 MHz to 300 MHz
• 2 or 4 totally-isolated channels
• 30 direct command keys on the front panel
• Sampling rate: 2.5 GS/s in one-shot mode and 100 GS/s max in ETS zoom mode
• Quick battery charging in just 2 hours; battery life up to 8 hours
• Communication: Ethernet/WiFi/USB/μSD. The Ethernet network interface with ScopeNet web server can be used to take control of the instrument remotely and transfer curves or screenshots without any additional software.
• High-capacity μSD storage; above 32 GB: SD, SDHC, SDXC
• A ScopeNet ANDROID applications is available from Google store.
• PROBIX plug-and-play accessories: quick, error-free implementation. The coefficients, scales and units of the sensors and the configuration of the channels are managed automatically and the probes and adapters are recognized immediately as soon as they are connected.
• Delivered complete in a bag with its measurement accessories
Price of the Product
Price not indicated
Technical Details
5 instruments in 1 - 5 good reasons to choose a SCOPIX IV
OSCILLOSCOPES WITH ISOLATED CHANNELSNEW GENERATION
Oscilloscope, multimeter, analyser and recorder modes, with the recorded files directly viewable on the oscilloscope.
Safety: channels genuinely isolated from one another and from the earth, 600 V CAT III & Probix probes
Ergonomics: modern, hi-tech environment for oscilloscopes which are simple, compact and practical
Optimization of all the tools: communication, storage and operation
METRIX® expertise applied to all the modes: bandwidth, sampling, memory, etc.
OSCILLOSCOPES WITH ISOLATED CHANNELSNEW GENERATION
Oscilloscope, multimeter, analyser and recorder modes, with the recorded files directly viewable on the oscilloscope.
Safety: channels genuinely isolated from one another and from the earth, 600 V CAT III & Probix probes
Ergonomics: modern, hi-tech environment for oscilloscopes which are simple, compact and practical
Optimization of all the tools: communication, storage and operation
METRIX® expertise applied to all the modes: bandwidth, sampling, memory, etc.
